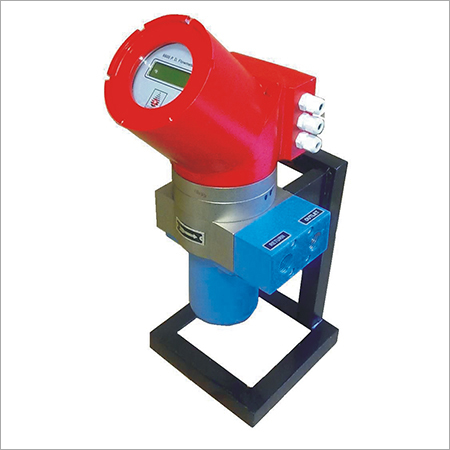

500-3500 HP Fuel Consumption Monitor

500-3500 HP Fuel Consumption Monitor
500-3500 HP Fuel Consumption Monitor
Product Code : 500-3500 HP Fuel Consumption Monitor
Product Description

Having immense expertise in this domain, we have been engrossed in manufacturing, exporting and supplying quality assured 500-3500 HP Fuel Consumption Monitor. This monitor is manufactured using supreme grade components by our skilled professionals with the aid of cutting-edge techniques. The offered product is ideal to be used for monitoring the consumption of fuel in various industrial application. Furthermore, the provided 500-3500 HP Fuel Consumption Monitor can be bought from us at rock bottom prices.

Key Points:

  • Enhanced durability
  • Sturdiness
  • Easy to use
  • Highly reliable

500-3500 HP Fuel Consumption Monitor

Features:

  • Accuracy guaranteed over 15-1500 LPH consumption.
  • Built in high capacity filter.
  • Works on 12V / 24V DC power supply.
  • Measures net consumption with single flow sensor.
  • Gravity head not essential for operation.
  • RS 485 Serial output - optional for PLC / SCADA interface.
  • Provided with sturdy mounting frame.

Specification:

Measurement Flow Range

: 150-1500 LPH

Accuracy

±0.5% of reading

Service

Diesel

Operating Temp.

0-70 C

Display

8 2 Dot matrix LCD back light display.

Fuel Totaliser - 999999.9 lit.

Engine Run Time - 999999.99 Hrs/mins.

Filter Element

25 micron paper replicable type.

Power Supply

24V DC

Port Size

Inlet - 1 BSPF

Outlet - 1 BSPF

Return - 1 BSPF

Mounting

MS fabricated frame for ground mounting of unit.

Serial Output

RS 485 MODBUS RTU optional


Dimension:

500-3500 HP Fuel Consumption Monitor

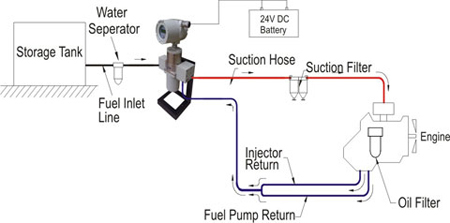

Installation:

Installation 500-3500 HP Fuel Consumption Monitor
