Barrel Unloading System

Barrel Unloading System
Barrel Unloading System
Product Code : Series 7110
Product Description

Barrel Unloading System

We presents, series 7110, specially designed for accurate measurement of liquid fuels such as diesel, kerosene and solvents during unloading from barrels. Accurate flow measurement is the only solution to checking the dip rod measurement standard on barrels. The system offers excellent protection against pilferage and short supply normally encountered in this application. Moreover, it is designed to offer accurate and precise results besides its low cost of maintenance. Easy to operate, these systems are available at customer friendly prices.

Features

  • High accuracy positive displacement flow sensor for measurement.
  • 1 HP Gear Pump for decanting barrel within 10min.
  • High capacity air separator for maintaining accuracy.
  • Construction ensures system is fully primed at all times.
  • LCD display for easy readability.
  • Weather proof and flame proof electrical fitting.
  • Convenient metal barrel suction tube with hose provided.
  • Left over liquid in barrel is less than half a litre.
  • Convenient mobile trolley mounted for portability.
  • RS 485 Serial - output for PLC interface optional.

Technical Specifications

Flow Capacity

25 LPM

Accuracy

Better than 0.5%

Flow Meter Type

Positive Displacement - Rotary Piston

Pump Type

Gear Pump

Motor

1HP 3X 440V power supply

Air Separator

High capacity 1/2" Port size

Display

5 digit 1/2" LCD 1999.9 litre resettable, 8 digit 8mm LCD 999999.9 litre non resettable

Barrel Suction Tube

1" Metal pipe

Trolley

Fabricated steel with center wheel.

Filter

150 Micron reusable.

Suction Hose

1", 3 Meter long Rubber Hose

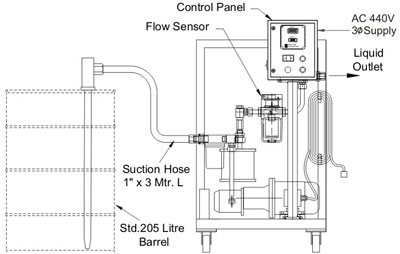

Installation
