Rotary Vane PD Flow Meter

Rotary Vane PD Flow Meter
Rotary Vane PD Flow Meter
Product Code : Rotary Vane PD Flow
Product Description

Being a quality and client centric firm, we have been betrothed in manufacturing, exporting and supplying top notch grade Rotary Vane PD Flow Meter. This meter is manufactured using quality assured components under the observation of our deft professionals with the aid of sophisticated techniques. The offered meter is ideal to be used for measuring position displacement of device. In addition to this, the provided Rotary Vane PD Flow Meter can be bought from us at budget friendly rates.

Key Points:

  • Trouble free working
  • Less power consumption
  • User friendly
  • Highly durable

Features:

  • High Accuracy ±0.1% of reading.
  • Fully mechanical system safe for hazardous area use.
  • Wear compensating vane design.
  • Large numeral counter for easy readability.
  • High repeatability ±0.02% of reading.
  • Stepless calibration adjustment.
  • Very low pressure prop.z
  • Pulse output for remote monitoring optional.

Specification:

Type Positive displacement Rotary Vane.
Size 40NB.
Flow Range 35-350 LPM
Counter Veeder Root 7887 Large Numeral
Accuracy ±0.1% of reading
Repeatability Better than ±0.02%.
Range ability 10% - 100% of max. flow range.
Max. Working Pressure 10 kg/cm2.
Operating Temp. Range 30 C-70 C.
Filter Element 150 micron SS reusable.
Air Eliminator Float activated pilot operated.
Material of construction Meter body - Cast Iron
Strainer A/E - Carbon steel
Vanes - Morganite Carbon CY10C
Seals - Nitrile
Rotor - Aluminium
Float - SS 316

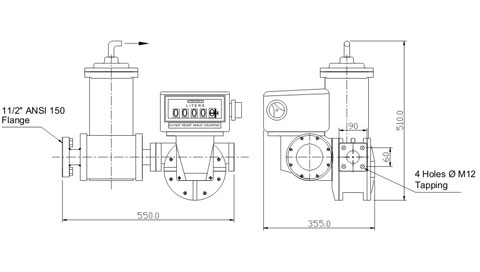

Dimensions:

Rotary Vane PD Flow Meter
