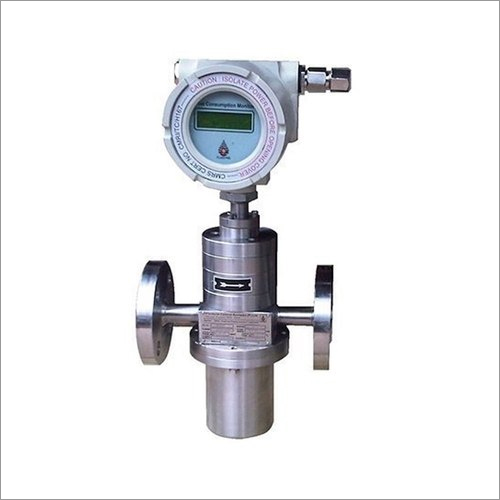

Pharmaceutical Solvent Flow Meter

Name: Pharmaceutical Solvent Flow Meter
Brand: FLUIDYNE CONTROL SYSTEMS (P) LTD.
Price: 80000.00 INR
Availability: InStock

Price 80000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Pharmaceutical Solvent Flow Meter Specification

Diameter
15mm to 100mm

Current Range
4-20mA Output

Protection
IP65

Application Media
Pharmaceutical solvents and chemicals

Resolution
0.01 LPM

Connectivity Type
RS485 / 4-20mA / Relay

Flow Rate
0.2 to 200 LPM

Humidity %
95% RH, non-condensing

Sensor Type
Turbine / Electromagnetic

Temperature Range
-10C to 80C

Frequency
50 / 60 Hz

Pressure Range
Up to 16 bar

Measurement Range
0.2 to 200 LPM

Capacity
Up to 5000 LPH

Equipment Type
Pharmaceutical Solvent Flow Meter

Material
SS316 / SS304 / PVDF

Power Supply
230V AC / 24V DC

Power Consumption
<10 VA

Accuracy
0.5% of reading

Display Type
Digital LCD Display

Range
0.2 to 200 LPM

Output Signal
Pulse / Analog

Enclosure Material
Powder Coated Aluminum / SS316

Ingress Protection
IP65 / IP67 option

Communication
Modbus RTU

Display Resolution
0.01 LPM

Calibration
Factory calibrated; user re-calibration supported

Gross Weight
Approx 2.5 Kg

Response Time
1 Sec

Cable Entry
M20 x 1.5

Operating Pressure
0-16 bar

Process Connection
Flanged / Threaded

Mounting Type
Inline / Flanged

Ambient Temperature
-10C to 55C

Pharmaceutical Solvent Flow Meter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces, , Per Week

Delivery Time
1 Week

About Pharmaceutical Solvent Flow Meter

Product details

Country of Origin	Made in India
Material	Stainless Steel
Usage/Application	Pharmaceutical Industry
Flow Range	24000 LPH
Electronics Enclosure	Flameproof / Weatherproof
Accuracy	+/- 0.5%
Line Size	3"
Operating Pressure	Up to 10 Bar
Power Supply	24 V DC
Operating Temperature	Up to 150 Degree C
Display	Digital
Brand	Fluidyne

Also available in:

Flow range between 1 - 24000 LPH
Line size between 1/2" to 3"

Advanced Measurement with Quick Response

This Pharmaceutical Solvent Flow Meter delivers rapid and reliable flow readings with a response time of 1 second, ensuring optimal process control. Its factory-calibrated system, with support for user re-calibration, ensures sustained accuracy over prolonged use, minimizing downtime and maintenance. Ideal for pharmaceutical applications, it is capable of measuring solvent flow precisely across a broad operating range.

Robust Construction and Flexible Integration

Featuring a durable, corrosion-resistant enclosure made of powder-coated aluminum or SS316, the meter is suitable for harsh industrial environments. Multiple process connection types (flanged/threaded) and communication protocols (Modbus RTU, RS485, analog, relay) allow seamless integration into modern or legacy control systems. Additionally, the IP65/IP67 ingress protection and versatile mounting options provide enhanced installation flexibility.

FAQ's of Pharmaceutical Solvent Flow Meter:

Q: How is the Pharmaceutical Solvent Flow Meter installed?

A: The flow meter can be mounted inline or with flanged connections, fitting pipelines with diameters from 15mm to 100mm. Installation is straightforward, conforming to industry-standard process connections including flanged and threaded options.

Q: What output signals and communication options does the meter provide?

A: This flow meter offers pulse and analog outputs (4-20mA), along with digital connectivity through RS485 and Modbus RTU, making it compatible with standard industrial monitoring and control systems.

Q: When should the user re-calibrate the flow meter?

A: The flow meter is factory-calibrated for immediate use. However, user re-calibration can be performed periodically or whenever process conditions change significantly, ensuring accuracy is maintained over time.

Q: Where can the flow meter be used, considering environmental factors?

A: Designed for pharmaceutical solvents and chemicals, the meter operates reliably in ambient temperatures from -10C to 55C, with process temperature capability up to 80C, and offers ingress protection up to IP65 or IP67, making it suitable for indoor and demanding industrial settings.

Q: What is the process for integrating the flow meter into a control system?

A: Integration involves connecting its electrical outputs to your data acquisition or control system via analog, relay, or RS485/Modbus RTU communication channels. The M20 x 1.5 cable entry ensures secure wiring for power (230V AC/24V DC) and signal outputs.

Q: How does the flow meter benefit pharmaceutical operations?

A: With high 0.5% accuracy, digital LCD display, and robust design, this meter ensures precise monitoring, process reliability, and easy maintenance, helping maintain stringent pharmaceutical standards and boosting operational efficiency.

Q: What types of solvents or chemicals can be measured with this device?

A: Constructed from SS316, SS304, or PVDF, the flow meter is engineered for compatibility with a wide range of pharmaceutical solvents and corrosive chemicals often encountered in production environments.
