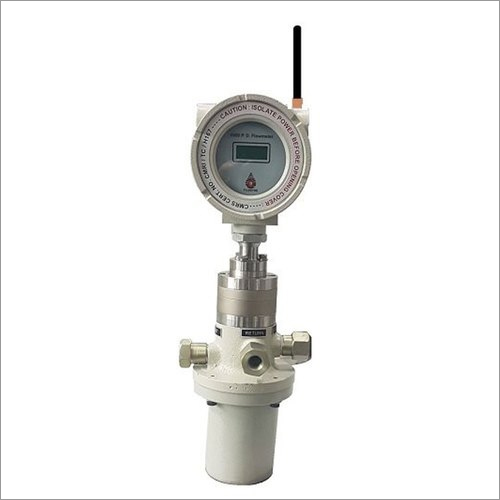

Fuel Management Flow Metering System

Name: Fuel Management Flow Metering System
Brand: FLUIDYNE CONTROL SYSTEMS (P) LTD.
Price: 200000.00 INR
Availability: InStock

Price 200000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Fuel Management Flow Metering System Specification

Measurement Range
0-999999 Liters

Connectivity Type
RS-485, Modbus, GPRS (optional)

Frequency
50-60 Hz

Humidity %
0-95% RH (non-condensing)

Current Range
4-20 mA (analog output)

Temperature Range
-20C to +60C

Capacity
Suitable for small to large vehicles and tanks

Pressure Range
0-25 bar

Sensor Type
Positive Displacement / Turbine

Resolution
0.01 Liter

Flow Rate
0.5-5000 LPH

Material
Stainless Steel, Aluminum Alloy

Power Supply
230V AC / 12-24V DC

Power Consumption
Low (<10W)

Accuracy
0.5%

Display Type
Digital LCD

Range
0-5000 LPH

Ambient Noise Immunity
EMI/RFI shielded

Ingress Protection
IP65

Calibration
On-site keypad calibration

Fuel Compatibility
Diesel, Petrol, Kerosene & Biofuels

Enclosure Material
Powder-coated aluminum / SS

Dimensions
210mm x 150mm x 120mm

Mounting Type
Pipe mount / panel mount

Alarm Outputs
Programmable relay output

Power Backup
Built-in battery backup for data retention

User Interface
Membrane keypad

Weight
Approx. 6 kg

Flow Direction
Uni-directional / Bi-directional selectable

Operating Pressure
Max 25 bar

Data Logging
Internal memory up to 100,000 records

Output Signal
Pulse / Analog

Fuel Management Flow Metering System Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units, , Per Month

Delivery Time
1 Months

About Fuel Management Flow Metering System

Product details

Accuracy	0.5% of Reading
Analogue Output	20 mA
Operating Pressure	10 Kg / Cm2
Operating Temperature	150 Degree C
Repeatability	+- 0.1% of Reading
Voltage	AC 230 V
Frequency	50 Hz
Display	Digital
Flow range	24000 LPH
Brand	Fluidyne

Comprehensive Fuel Compatibility

Covering a wide variety of fuels, including diesel, petrol, kerosene, and biofuels, this metering system is engineered for versatile deployment across industries. Its uni-directional or bi-directional flow configuration ensures suitability for multiple operational setups, from single dispensers to complex distribution networks.

Advanced Data Logging and Connectivity

With internal memory capable of storing up to 100,000 transaction records, the system offers robust data management essential for monitoring and compliance. Connectivity features such as RS-485, Modbus, and optional GPRS enable seamless integration into existing infrastructure or remote monitoring platforms.

Rugged Design with Superior Accuracy

Encased in EMI/RFI-shielded powder-coated aluminum or stainless steel, the unit ensures high durability and stability in harsh conditions. With an accuracy of 0.5%, the digital LCD display and on-site calibration help maintain dependable measurement standards across varying flow rates and operational environments.

FAQs of Fuel Management Flow Metering System:

Q: How does the fuel management flow metering system support on-site calibration?

A: The system features a membrane keypad that allows users to perform precise on-site calibration, ensuring accuracy remains within 0.5%. This process helps adapt the meter to specific operational conditions or fuel characteristics without removing it from service.

Q: What types of fuels are compatible with this metering system?

A: This flow metering system is compatible with diesel, petrol, kerosene, and biofuels, making it ideal for diverse applications in both transportation and storage scenarios.

Q: When should the programmable alarm outputs be configured?

A: Alarm outputs can be set up during initial installation or whenever operational thresholdssuch as maximum flow rate, pressure, or temperatureneed to be monitored. The programmable relay will notify operators instantly of any condition deviations.

Q: Where can this system be installed, and what are the mounting options?

A: It supports both pipe mount and panel mount configurations, enabling installation at fueling stations, storage tanks, or directly onto delivery pipelines, ensuring flexibility in deployment for various site layouts.

Q: What is the process for accessing logged flow data?

A: Users can review flow data directly on the digital LCD or export records via RS-485, Modbus, or GPRS (optional) connectivity. The internal memory reliably stores up to 100,000 records for traceability and audits.

Q: How does the built-in battery backup benefit users during power interruptions?

A: The integrated battery backup ensures that data retention and clock functions persist during power outages, safeguarding critical operational and transaction records until normal power supply resumes.
